Reflection on Knitted Memories #

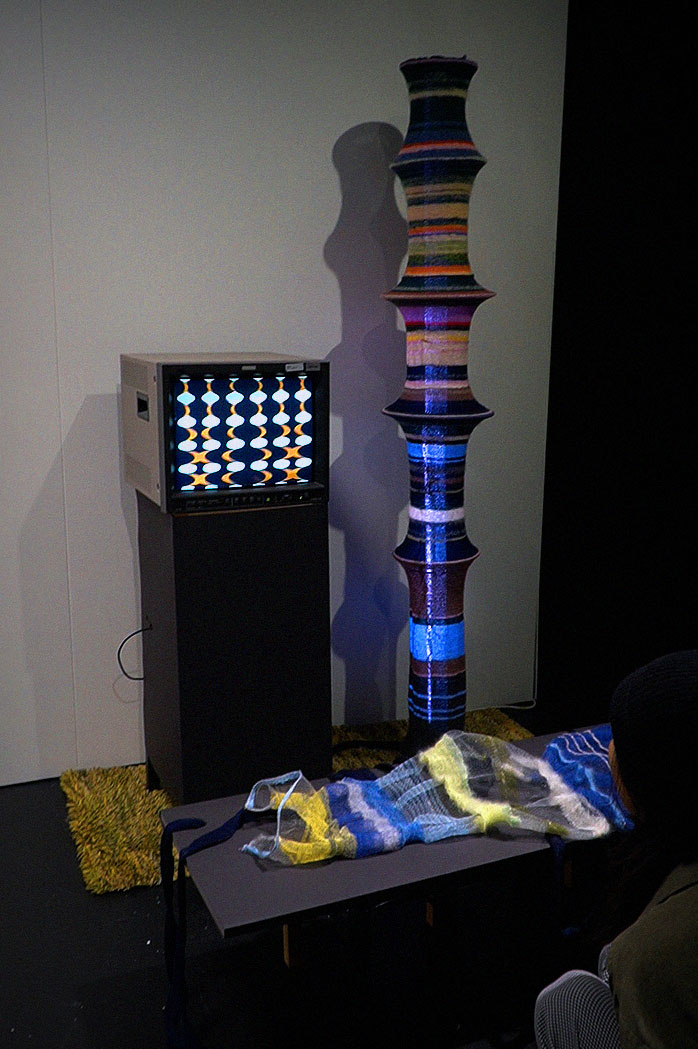

By exploring atmospheres, materials and the act of archiving memories we brought into life the work Knitted Memories. Knitted Memories is a new media art installation combining the tactile knitted surfaces with sound and light while questioning our relation to technologies and how we archive and share memories. The installation consists of three main elements: the visuals, the lamp and the interface. By touching the interface you play sound rocordings and both visuals and LED lights are based on the sound playing. The elements are exhibited in the setting of a room, including readymades from the past – the rya rug and the old TV monitor – making it a bit of an odd mix of both futuristic and retro coded aesthetics. By that we hope the viewer reflects on memories and time while they discover the sounds we are hiding in the knitted materialities. They sense the changing atmosphere and ideally think of the way we archive and revisit our memories. Is it giving that the screen of our phones are the only surface of interaction that leads os to our memories or could it be a colorful scarf instead?
Knitted Memories is made in collaboration with textile designer Lila Monin, who designed and machine knitted the interactive piece of textile using conductive yarn to activate the touch sensor. All sounds are recorded by Hitomi Asaka. They are mainly everyday sounds, supporting the visualization of memories in our work.
Knitted Memories started already when I arrived to Finland, before I even knew I was going to make this project. I knitted in the metro, during the lectures and all around in Helsinki. I bought yarn in the colors of my mood and in this way I tried to archive all my new memories in the colors and textures of the wool. Already by knitting in these public spaces I was questioning our relation to technologies. Every morning in the metro, passengers were all looking at their phones. No eye contact, no small talk, no nothing, just the smell of sweat and coffee breathe and stinking red bulls in the rush hour. I challenged this by knitting and I discovered how this could shaken up the space and lead to conversations, but also how it made me feel better when arriving to my destination.
During the project I learned a lot in all phases of the work. And honestly I am surprised that all parts worked out successfully. I will describe some of the learnings I achieved during the project.

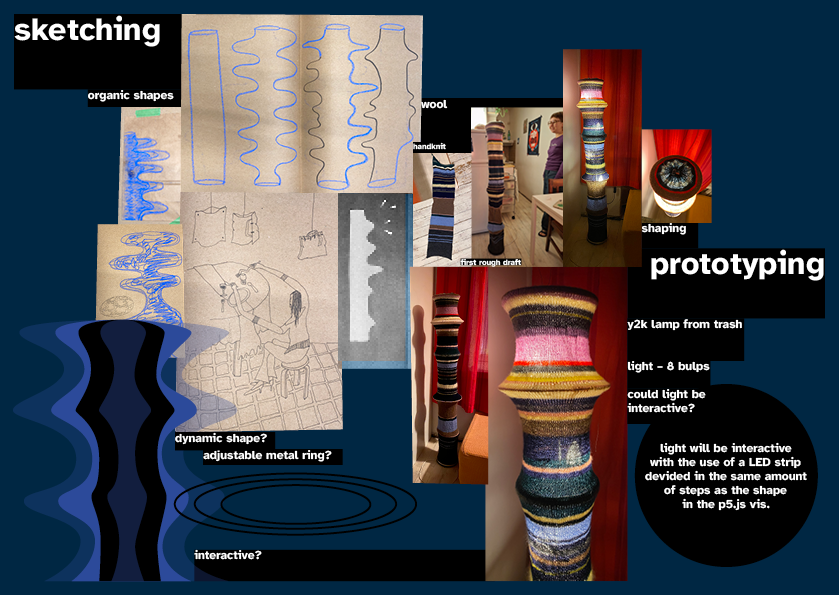

The visuals

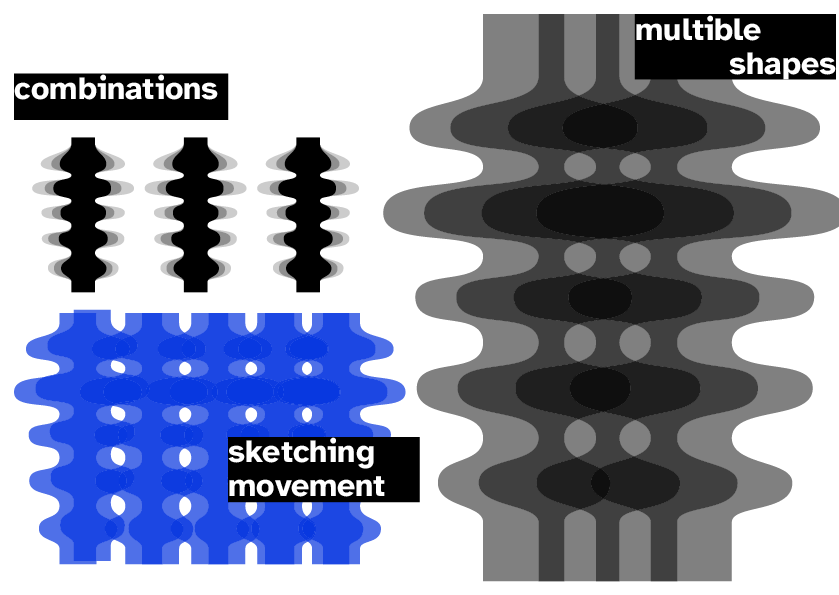

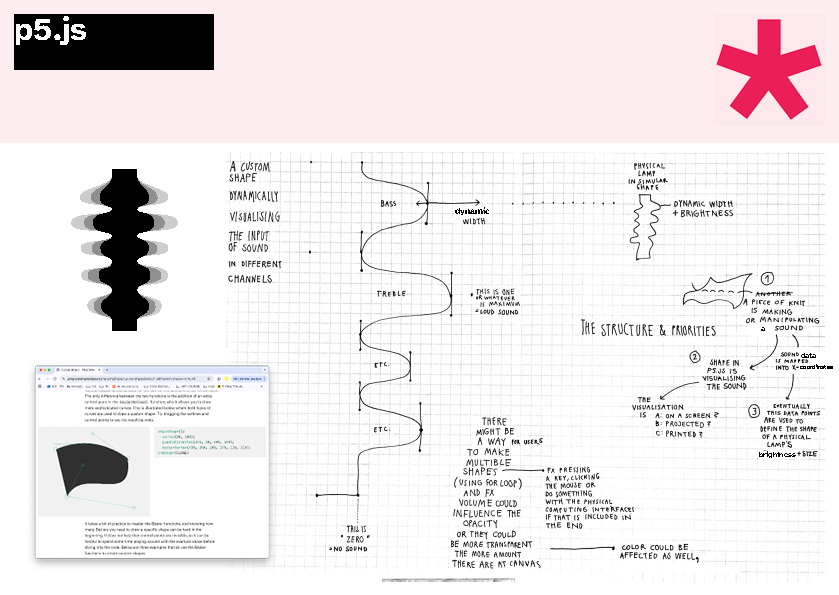

From making the visuals I learned how to work with custom shapes in p5.js, which includes getting an understanding of vertex and bézier curves. This was tricky at first, but in the result a pretty convenient way to make more complex shapes drawn directly into the code. Afterwards I could easily use translate to define the position on the canvas. Further on I learned a bit about sound, what values I could get from the playing sound and how to make the object react to this data. I used the keyPressed to control the sounds and I should later on experience that this was a smart way to structure the interaction.
The Interface
The interface was a collaboration with textile designer, Lila Monin. Together we went trough a trial and error process, discovering how we could include conductive yarn in the knit and get some useful data to visuals and sound. In the beginning we aimed to make a stretchable textile we could use as a slider in the code, but we discovered early in the process how challenging this was. Thus we used the capacitive sensor instead and used the conductive yarn to make touchable spots in the knit and by doing this we could make the textile a keyboard and didn’t have to change anything in the main code. I was especially surprised at this points, when we made this work and we could play the sounds by the “keys” in the knitted samples.
The lamp
By making the lamp and the interactive LED strip I learned about coding Neo Pixels. This was fairly simple by using the example code from the Neo Pixel library and the main challenges was sending the data from p5.js to get a smooth changing light in the lamp. Since I have not done any kinds of physical computing before it was as well a learning for me to set up the right power circuit on the breadboard.
The Arduino code for the knitted interface:
/*********************************************************
This is a library for the MPR121 12-channel Capacitive touch sensor
Designed specifically to work with the MPR121 Breakout in the Adafruit shop
----> https://www.adafruit.com/products/
These sensors use I2C communicate, at least 2 pins are required
to interface
this sketch demonstrates the auto-config chip-funktionality.
for more information have a look at
https://github.com/adafruit/Adafruit_MPR121/issues/39
https://github.com/adafruit/Adafruit_MPR121/pull/43
based on MPR121test
modified & extended by Carter Nelson/caternuson
MIT license, all text above must be included in any redistribution
**********************************************************/
#include <Wire.h>
#include <Adafruit_MPR121.h>
#include "Keyboard.h"
#ifndef _BV
#define _BV(bit) (1 << (bit))
#endif
Adafruit_MPR121 cap = Adafruit_MPR121();
// Keeps track of the last pins touched
// so we know when buttons are 'released'
uint16_t lasttouched = 0;
uint16_t currtouched = 0;
void dump_regs() {
Serial.println("========================================");
Serial.println("CHAN 00 01 02 03 04 05 06 07 08 09 10 11");
Serial.println(" -- -- -- -- -- -- -- -- -- -- -- --");
// CDC
Serial.print("CDC: ");
for (int chan=0; chan<12; chan++) {
uint8_t reg = cap.readRegister8(0x5F+chan);
if (reg < 10) Serial.print(" ");
Serial.print(reg);
Serial.print(" ");
}
Serial.println();
// CDT
Serial.print("CDT: ");
for (int chan=0; chan<6; chan++) {
uint8_t reg = cap.readRegister8(0x6C+chan);
uint8_t cdtx = reg & 0b111;
uint8_t cdty = (reg >> 4) & 0b111;
if (cdtx < 10) Serial.print(" ");
Serial.print(cdtx);
Serial.print(" ");
if (cdty < 10) Serial.print(" ");
Serial.print(cdty);
Serial.print(" ");
}
Serial.println();
Serial.println("========================================");
}
void setup() {
delay(1000);
Serial.begin(115200);
Keyboard.begin();
//while (!Serial);
Serial.println("MPR121 Autoconfiguration Test. (MPR121-AutoConfig.ino)");
Serial.println("startup `Wire`");
Wire.begin();
Serial.println("startup `Wire` done.");
delay(100);
Serial.println("cap.begin..");
if (!cap.begin(0x5A, &Wire)) {
Serial.println("MPR121 not found, check wiring?");
while (1);
}
Serial.println("MPR121 found!");
delay(100);
Serial.println("Initial CDC/CDT values:");
dump_regs();
cap.setAutoconfig(true);
Serial.println("After autoconfig CDC/CDT values:");
dump_regs();
}
void loop() {
// Get the currently touched pads
currtouched = cap.touched();
for (uint8_t i=0; i<12; i++) {
// it if *is* touched and *wasnt* touched before, alert!
if ((currtouched & _BV(i)) && !(lasttouched & _BV(i)) ) {
Serial.print(i); Serial.println(" touched");
Keyboard.press(i+48);
}
// if it *was* touched and now *isnt*, alert!
if (!(currtouched & _BV(i)) && (lasttouched & _BV(i)) ) {
Serial.print(i); Serial.println(" released");
Keyboard.release(i+48);
}
}
// reset our state
lasttouched = currtouched;
}
p5.js code:
let x;
let xa;
let xb;
//let o = 120; //opacity could be dynamic at some point
let fft;
let spectrum;
let treble;
let highMid;
let mid;55555
let lowMid;
let bass;
let bird, sea, glass05, glass06, branches, drum02, moreBranches, drum, wind, underWater, ceramic, piano, reeds, whiteNoise, synth, Synth_4, Synth_9;
//let audioFilter; //low pass filter for sound
let port; //serial port variable
//BIRD POSITION WHEN BIRD SOUND IS PLAYING
let xx;
let yy;
//RAINDROPS WHEN XX SOUND IS PLAYING
let n = 2000; //number of times you wanna repeat drops
let xxx = [];
let yyy = [];
let s = [];
let sw = 3; //width of shapes
//let ns = 200; //number of times you wanna repeat stars
let nStar = 200;
let xStar = [];
let yStar = [];
let offsetX;
let offsetY;
//Sounds recorded by Hitomi
function preload() {
bird = loadSound("data/bird.m4a");
glass05 = loadSound("data/hitting_glass_05.WAV");
glass06 = loadSound("data/hitting_glass_06.WAV");
branches = loadSound("data/branches.WAV");
moreBranches = loadSound("data/more_branches.WAV");
drum = loadSound("data/Steel tongue drum.m4a");
drum02 = loadSound("data/Steel tongue drum 2.m4a");
wind = loadSound("data/Strong wind_ZOOM0001_MN.WAV");
//sea = loadSound("data/sea.wav");
sea = loadSound("data/suomelinna_sea.m4a");
underWater = loadSound("data/under_water.wav");
ceramic = loadSound("data/Humm and beep at ceramic WS.m4a");
piano = loadSound("data/piano.m4a");
reeds = loadSound("data/reeds.WAV");
whiteNoise = loadSound("data/White noise_ZOOM0002_MN.WAV");
synth = loadSound("data/synth audio_eg.wav");
synth_4 = loadSound("data/cmaj4_synth.wav");
synth_9 = loadSound("data/Cmaj9_synth.wav");
imgBird = loadImage("data/bird.png");
}
function setup() {
createCanvas(windowWidth, windowHeight);
//smoothing value and how many bins added in the parantheses
//specific steps: 1024 is max: 16, 32 ...
fft = new p5.FFT(0.85, 32); //smooth highter number smoother shapes
whiteNoise.play();
whiteNoise.setLoop(true);
//whiteNoise.setVolume(0.8);
outputVolume(0.8);
//audioFilter = new p5.LowPass(); // not really used yet
port = createSerial(); //TO SEND VALUES TO ARDUINO
//FOR THE BIRD
xx = random(50, width/2);
yy = random(50, height/4*3);
}
function draw() {
background(200, 210, 200);
//let c2= color(120,110, 100);
let c2= color(180,140, 80);
let c1= color(0,0, 20);
noStroke();
spectrum = fft.analyze();
/* let v = map(mouseY, height, 0, 0, 1);
//outputVolume(v); */
treble = fft.getEnergy("treble");
highMid = fft.getEnergy("highMid");
mid = fft.getEnergy("mid");
lowMid = fft.getEnergy("lowMid");
bass = fft.getEnergy("bass");
/* MAP VALUES
treble = map(treble, 0, 255, 50, 255);
highMid = map(highMid, 0, 255, 50, 255);
mid = map(mid, 0, 255, 50, 255);
lowMid = map(lowMid, 0, 255, 50, 255);
bass = map(bass, 0, 255, 50, 255);
*/
//SEND VALUES TO ARDUINO: knit_light
port.write(int(treble) + ","+ int(highMid) + ","+ int(mid) + ","+int(lowMid) + ","+int(bass) + "\n");
if(port.available()>0){
let str = port.readUntil("\n");
//console.log(str); //TO SEE WHAT VALUES ARE SEND TO ARDUINO
port.clear();
}
//VARIABLES FOR SHAPE A – LIGHT SHAPE
let sT1 = map(treble, 0, 255, 240, 800);
let sH1 = map(highMid, 0, 255, 200, 700);
let sM1 = map(mid, 0, 255, 120, 700);
let sL1 = map(lowMid, 0, 255, 120, 700);
let sB1 = map(bass, 0, 255, 120, 700);
//VARIABLES FOR SHAPE B – DARK SHAPE
let sT2 = map(treble, 0, 255, 150, 400);
let sH2 = map(highMid, 0, 255, 130, 400);
let sM2 = map(mid, 0, 255, 80, 400);
let sL2 = map(lowMid, 0, 255, 80, 400);
let sB2 = map(bass, 0, 255, 80, 400);
//SHAPE A-B-02 ___________________________________________________________________________________________
fill(c2);
let shapeX = width/6;
let shapeY = 0;
push();
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT1; }
if (i == 2) { xa = x + sH1; }
if (i == 4) { xa = x + sM1; }
if (i == 6) { xa = x + sL1; }
if (i == 8) { xa = x + sB1; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2;}
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB1; }
if (i == 2) { xa = x - sL1; }
if (i == 4) { xa = x - sM1; }
if (i == 6) { xa = x - sH1; }
if (i == 8) { xa = x - sT1; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2;}
}
vertex(x, 0);
endShape(CLOSE);
//SHAPE B
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT2; }
if (i == 2) { xa = x + sH2; }
if (i == 4) { xa = x + sM2; }
if (i == 6) { xa = x + sL2; }
if (i == 8) { xa = x + sB2; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB2; }
if (i == 2) { xa = x - sL2; }
if (i == 4) { xa = x - sM2; }
if (i == 6) { xa = x - sH2; }
if (i == 8) { xa = x - sT2; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }
}
vertex(x, 0);
endShape(CLOSE);
pop();
fill(c2);
//SHAPE A-B-03___________________________________________________________________________________________
//TRANSLATE – to position center the shape
shapeX = width/6*2;
shapeY = 0;
push();
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT1; }
if (i == 2) { xa = x + sH1; }
if (i == 4) { xa = x + sM1; }
if (i == 6) { xa = x + sL1; }
if (i == 8) { xa = x + sB1; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2;
}
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB1; }
if (i == 2) { xa = x - sL1; }
if (i == 4) { xa = x - sM1; }
if (i == 6) { xa = x - sH1; }
if (i == 8) { xa = x - sT1; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }}
vertex(x, 0);
endShape(CLOSE);
//SHAPE B
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sM2; }
if (i == 2) { xa = x + sH2; }
if (i == 4) { xa = x + sM2; }
if (i == 6) { xa = x + sL2; }
if (i == 8) { xa = x + sB2; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB2; }
if (i == 2) { xa = x - sL2; }
if (i == 4) { xa = x - sM2; }
if (i == 6) { xa = x - sH2; }
if (i == 8) { xa = x - sT2; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }}
vertex(x, 0);
endShape(CLOSE);
pop();
//SHAPE A-B-06 ___________________________________________________________________________________________
fill(c2);
push();
shapeX = width/6*5;
shapeY = 0;
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sM1;}
if (i == 2) { xa = x + sH1;}
if (i == 4) { xa = x + sM1;}
if (i == 6) { xa = x + sL1;}
if (i == 8) { xa = x + sB1;}
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB1; }
if (i == 2) { xa = x - sL1; }
if (i == 4) { xa = x - sM1; }
if (i == 6) { xa = x - sH1; }
if (i == 8) { xa = x - sT1; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }}
vertex(x, 0);
endShape(CLOSE);
//SHAPE B
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {xa = x + sT2; }
if (i == 2) {xa = x + sH2; }
if (i == 4) {xa = x + sM2; }
if (i == 6) {xa = x + sL2; }
if (i == 8) {xa = x + sB2; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB2; }
if (i == 2) { xa = x - sL2;}
if (i == 4) { xa = x - sM2;}
if (i == 6) { xa = x - sH2;}
if (i == 8) { xa = x - sT2;}
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }
}
vertex(x, 0);
endShape(CLOSE);
pop();
//SHAPE A-B-05___________________________________________________________________________________________
push();
fill(c2);
shapeX = width/6*4;
shapeY = 0;
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {xa = x + sT1;}
if (i == 2) {xa = x + sH1;}
if (i == 4) {xa = x + sM1;}
if (i == 6) {xa = x + sL1;}
if (i == 8) {xa = x + sB1; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {xa = x - sB1; }
if (i == 2) {xa = x - sL1; }
if (i == 4) { xa = x - sM1; }
if (i == 6) {xa = x - sH1; }
if (i == 8) {xa = x - sT1; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2;
}}
vertex(x, 0);
endShape(CLOSE);
//SHAPE B
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {xa = x + sT2; }
if (i == 2) {xa = x + sH2; }
if (i == 4) {xa = x + sM2; }
if (i == 6) { xa = x + sL2;}
if (i == 8) {xa = x + sB2; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB2; }
if (i == 2) { xa = x - sL2; }
if (i == 4) { xa = x - sM2; }
if (i == 6) { xa = x - sH2; }
if (i == 8) { xa = x - sT2; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }
}
vertex(x, 0);
endShape(CLOSE);
pop();
//SHAPE A-B-01 ___________________________________________________________________________________________
push();
fill(c2);
shapeX = 0;
shapeY = 0;
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT1; }
if (i == 2) { xa = x + sH1; }
if (i == 4) { xa = x + sM1; }
if (i == 6) { xa = x + sL1; }
if (i == 8) { xa = x + sB1; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB1; }
if (i == 2) { xa = x - sL1; }
if (i == 4) { xa = x - sM1; }
if (i == 6) { xa = x - sH1; }
if (i == 8) { xa = x - sT1; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2;
}
}
vertex(x, 0);
endShape(CLOSE);
//SHAPE B
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT2; }
if (i == 2) { xa = x + sH2; }
if (i == 4) { xa = x + sM2; }
if (i == 6) { xa = x + sL2; }
if (i == 8) { xa = x + sB2; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB2; }
if (i == 2) { xa = x - sL2; }
if (i == 4) { xa = x - sM2; }
if (i == 6) { xa = x - sH2; }
if (i == 8) { xa = x - sT2; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }
}
vertex(x, 0);
endShape(CLOSE);
pop();
//SHAPE A-B-07 ___________________________________________________________________________________________
fill(c2);
push();
shapeX = width;
shapeY = 0;
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT1; }
if (i == 2) { xa = x + sH1; }
if (i == 4) { xa = x + sM1; }
if (i == 6) { xa = x + sL1; }
if (i == 8) { xa = x + sB1; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2;
}
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB1; }
if (i == 2) { xa = x - sL1; }
if (i == 4) { xa = x - sM1; }
if (i == 6) { xa = x - sH1; }
if (i == 8) { xa = x - sT1; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2;
}}
vertex(x, 0);
endShape(CLOSE);
//SHAPE B
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x + sT2; }
if (i == 2) { xa = x + sH2; }
if (i == 4) { xa = x + sM2; }
if (i == 6) { xa = x + sL2; }
if (i == 8) { xa = x + sB2; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) { xa = x - sB2; }
if (i == 2) { xa = x - sL2; }
if (i == 4) { xa = x - sM2; }
if (i == 6) { xa = x - sH2; }
if (i == 8) { xa = x - sT2; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }
}
vertex(x, 0);
endShape(CLOSE);
pop();
//SHAPE A-B-04, CENTER __________________________________________________________________________________________
fill(c2);
shapeX = width / 2;
shapeY = 0;
push();
//TRANSLATE – to position center the shape
translate(shapeX, shapeY);
//variables for SHAPE A
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE A
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {
let s = map(treble, 0, 255, 300, 900);
xa = x + s; }
if (i == 2) {
s = map(highMid, 0, 255, 200, 800);
xa = x + s; }
if (i == 4) {
s = map(mid, 0, 255, 120, 600);
xa = x + s; }
if (i == 6) {
s = map(lowMid, 0, 255, 120, 600);
xa = x + s; }
if (i == 8) {
s = map(bass, 0, 255, 120, 600);
xa = x + s;}
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2; } else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2;}
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {
s = map(bass, 0, 255, 120, 600);
xa = x - s; }
if (i == 2) {
s = map(lowMid, 0, 255, 120, 600);
xa = x - s; }
if (i == 4) {
s = map(mid, 0, 255, 120, 600);
xa = x - s; }
if (i == 6) {
s = map(highMid, 0, 255, 200, 800);
xa = x - s; }
if (i == 8) {
s = map(treble, 0, 255, 300, 900);
xa = x - s; }
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2;
}}
vertex(x, 0);
endShape(CLOSE);
//ANOTHER SAME SHAPE
fill(c1);
//variables for SHAPE B
x = 80;
xb = x - 80;
ya = height / 14;
yb = height / 35;
y = (height - (10 * ya + 8 * yb)) / 2;
//SHAPE B
beginShape();
vertex(x, 0);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {
let s = map(treble, 0, 255, 210, 600);
xa = x + s; }
if (i == 2) {
s = map(highMid, 0, 255, 140, 500);
xa = x + s; }
if (i == 4) {
s = map(mid, 0, 255, 80, 400);
xa = x + s; }
if (i == 6) {
s = map(lowMid, 0, 255, 80, 400);
xa = x + s; }
if (i == 8) {
s = map(bass, 0, 255, 80, 400);
xa = x + s; }
bezierVertex(x, y, xa, y + ya, x, y + ya * 2);
y = y + ya * 2;
} else {
bezierVertex(x, y, xb, y + yb, x, y + yb * 2);
y = y + yb * 2; }
}
vertex(x, height);
//updating variables so they are suitable for left side of shape
x = x - 160;
xa = x - s;
xb = x + 80;
//left side of SHAPE B
vertex(x, height);
vertex(x, y);
for (let i = 0; i < 9; i++) {
if (i % 2 == 0) {
if (i == 0) {
s = map(bass, 0, 255, 80, 400);
xa = x - s; }
if (i == 2) {
s = map(lowMid, 0, 255, 80, 400);
xa = x - s;
}
if (i == 4) {
s = map(mid, 0, 255, 80, 400);
xa = x - s;
}
if (i == 6) {
s = map(highMid, 0, 255, 140, 500);
xa = x - s;
}
if (i == 8) {
s = map(treble, 0, 255, 210, 600);
xa = x - s;
}
bezierVertex(x, y, xa, y - ya, x, y - ya * 2);
y = y - ya * 2;
} else {
bezierVertex(x, y, xb, y - yb, x, y - yb * 2);
y = y - yb * 2; }
}
vertex(x, 0);
endShape(CLOSE);
pop();
//SOUND SPECIFIC ELEMENTS
//"RAINDROPS" WHEN 'CLING' IS PLAYING
if (synth.isPlaying()){
for (let i = 0; i < n; i++) {
xxx[i] = random(width);
yyy[i] = random(height);
s[i] = random(2, 40);}
}
for (let i = 0; i < n; i++) {
fill(220, 220, 220);
ellipse(xxx[i], yyy[i], sw, s[i]);
//to add movement
xxx[i] = xxx[i] + random(-50, 50);
yyy[i] = yyy[i] + random(-100, 50);
}
//NEW STARS
if (glass05.isPlaying() || glass06.isPlaying()){
fill(treble*3, treble*3, 0);
//noStroke();
for (let i = 0; i < nStar; i++) {
xStar[i] = random(width);
yStar[i] = random(height);
}
for (let i = 0; i < nStar; i++) {
//ellipse(xxx[i], yyy[i], sw, s[i]);
offsetX = random(width);
offsetY = random(height);
push();
translate(offsetX, offsetY);
beginShape();
vertex(0+xStar[i], 0+yStar[i]);
vertex(8+xStar[i], 40+yStar[i]);
vertex(80+xStar[i], 35+yStar[i]);
vertex(15+xStar[i], 65+yStar[i]);
vertex(50+xStar[i], 120+yStar[i]);
vertex(0+xStar[i], 85+yStar[i]);
vertex(-60+xStar[i], 140+yStar[i]);
vertex(-25+xStar[i], 65+yStar[i]);
vertex(-100+xStar[i], 45+yStar[i]);
vertex(-20+xStar[i], 40+yStar[i]);
vertex(0+xStar[i], 0+yStar[i]);
endShape();
pop();
//to add movement
xxx[i] = xxx[i] + random(-1, 1);
yyy[i] = yyy[i] + random(-2, 5);
if (yyy[i] >= height) {
yyy[i] = -yyy[i] + height - 100 - random(10, 80);
}
}
}
//SEA — MANGLER SMOOTH IN / OUT
if (sea.isPlaying()){
fill(10,20,255-bass);
//quad(x1, y1, x2, y2, x3, y3, x4, y4)
quad(0, height-bass, width, height-highMid, width, height, 0, height);
}
if (bird.isPlaying()){
xx = xx+random(-80,100);
yy = yy+random(-80,70);
image(imgBird, xx, yy, 280, 260);
//tint(200,200,220);
}
if (sea.isPlaying() && synth.isPlaying()){
sea.setVolume(0.3);
}
}
//Function to play sounds with key 0-9
//CLICK ON THE SCREEN TO MAKE IT WORK
function keyPressed() {
if (key === "1") {
if (!bird.isPlaying()) {
bird.play();
xx= random(width/2);
yy = random(height/2);
}
} else if (key === "2") {
if (!glass05.isPlaying()) {
glass05.play();
} else {
if (!glass06.isPlaying()) {
glass06.play();
}
}
} else if (key === "3") {
if (!branches.isPlaying()) {
branches.play();
branches.setVolume(1);
} else {
if (!moreBranches.isPlaying()) {
moreBranches.play();
}
}
} else if (key === "8") {
if (!drum.isPlaying()) {
drum.play();
} else {
if (!drum02.isPlaying()) {
drum02.play();
}
}
} else if (key === "5") {
if (!underWater.isPlaying()) {
underWater.play();
//ceramic.setVolume(0.9);
}
} else if (key === "6") {
if (!sea.isPlaying()) {
sea.play();
//sea.setVolume(0.5);
}
} else if (key === "7") {
if (!wind.isPlaying()) {
wind.play();
}
} else if (key === "4") {
if (!synth.isPlaying()) {
synth.play();
}
else{
if (!synth_4.isPlaying()) {
synth_4.play();
}
}
} else if (key === "9") {
if (!piano.isPlaying()) {
piano.play();
} else {
if (!synth_9.isPlaying()) {
synth_9.play();
}
}
}
//TO SEND VALUES TO ARDUINO
function mousePressed(){
if (!port.opened()) {
port.open(115200);
}
}
The Arduino code for the light:
#include <Adafruit_NeoPixel.h>
// Which pin on the Arduino is connected to the NeoPixels?
#define LED_PIN 2
// How many NeoPixels are attached to the Arduino?
#define LED_COUNT 105
// NeoPixel brightness, 0 (min) to 255 (max)
#define BRIGHTNESS 100 // set BRIGHTNESS to about 1/5 (max = 255)
// Declare our NeoPixel strip object:
Adafruit_NeoPixel pixels(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);
// Argument 1 = Number of pixels in NeoPixel strip
// Argument 2 = Arduino pin number (most are valid)
// Argument 3 = Pixel type flags, add together as needed:
// NEO_KHZ800 800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)
// NEO_KHZ400 400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)
// NEO_GRB Pixels are wired for GRB bitstream (most NeoPixel products)
// NEO_RGB Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)
// NEO_RGBW Pixels are wired for RGBW bitstream (NeoPixel RGBW products)
int treble = 0;
int highMid = 0;
int mid = 0;
int lowMid = 0;
int bass = 0;
float sTreble = 0;
float sHighMid = 0;
float sMid = 0;
float sLowMid = 0;
float sBass = 0;
float w = 0.1;
float pTreble = 0;
float pHighMid = 0;
float pMid = 0;
float pLowMid = 0;
float pBass = 0;
void setup() {
pixels.begin(); // INITIALIZE NeoPixel strip object (REQUIRED)
pixels.show(); // Turn OFF all pixels ASAP
pixels.setBrightness(BRIGHTNESS);
Serial.begin(115200);
}
float filter(float rawValue, float w, float prevValue) {
float result = w * rawValue + (1.0 - w) * prevValue;
return result;
}
void loop() {
// if there's any serial available, read it:
while (Serial.available()) {
// look for the next valid integer in the incoming serial stream:
treble = Serial.parseInt();
// do it again:
highMid = Serial.parseInt();
// do it again:
mid = Serial.parseInt();
// do it again:
lowMid = Serial.parseInt();
// do it again:
bass = Serial.parseInt();
// look for the new line. That's the end of your sentence:
if (Serial.read() == '\n') {
}
}
sTreble = filter(treble, w, pTreble);
pTreble = sTreble;
sHighMid = filter(highMid, w, pHighMid);
pHighMid = sHighMid;
sMid = filter(mid, w, pMid);
pMid = sMid;
sLowMid = filter(lowMid, w, pLowMid);
pLowMid = sLowMid;
sBass = filter(bass, w, pBass);
pBass = sBass;
//SET PIXEL COLORS IN LED STRIP
for (int i = 0; i < 30; i++) {
pixels.setPixelColor(i, pixels.Color(int(sBass), int(sBass), int(sBass)));
}
for (int i = 30; i < 50; i++) {
pixels.setPixelColor(i, pixels.Color(int(sLowMid), int(sLowMid), int(sLowMid)));
}
for (int i = 50; i < 70; i++) {
pixels.setPixelColor(i, pixels.Color(int(sMid), int(sMid), int(sMid)));
}
for (int i = 70; i < 90; i++) {
pixels.setPixelColor(i, pixels.Color(int(sHighMid), int(sHighMid), int(sHighMid)));
}
for (int i = 90; i < 105; i++) {
pixels.setPixelColor(i, pixels.Color(int(sTreble), int(sTreble), int(sTreble)));
}
pixels.show();
delay(10);
Serial.print(int(sTreble));
Serial.print(",");
Serial.print(int(sHighMid));
Serial.print(",");
Serial.print(int(sMid));
Serial.print(",");
Serial.print(int(sLowMid));
Serial.print(",");
Serial.println(int(sBass));
}
//
