Junkbox #
The junkbox is a 4x stepper motor MIDI to analog vibration box inspired by Koka Nikoladze.

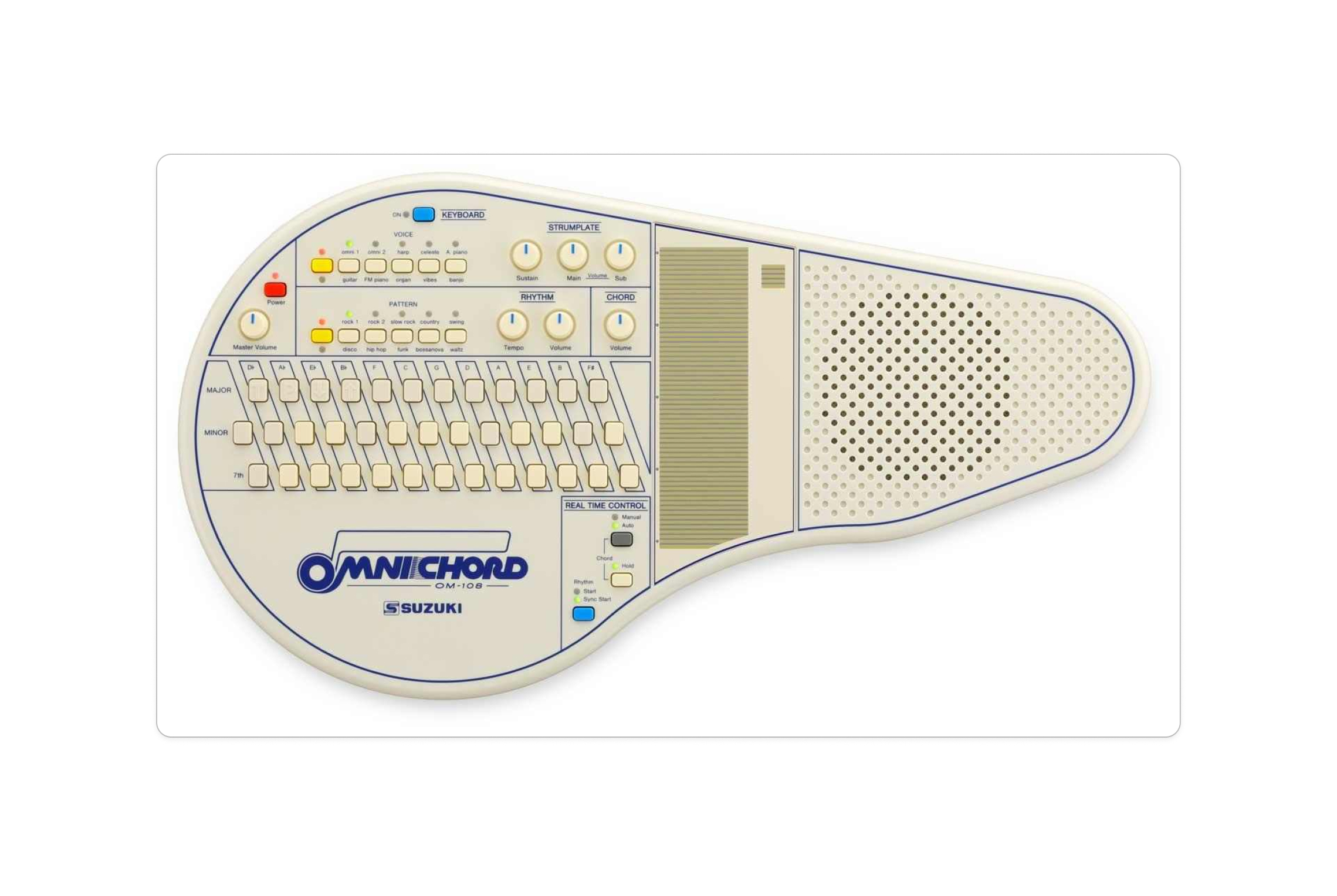

As a bonus thing to play with, for the Computational Art & Design part, I created a P5js sketch that is inspired by the Omnichord instrument.
Motor tuning code #
//including the MIDI libraries
#include <Arduino.h>
#include <Adafruit_TinyUSB.h>
#include <MIDI.h>
// USB MIDI object - library accessing
Adafruit_USBD_MIDI usb_midi;
// Create a new instance of the Arduino MIDI Library,
// and attach usb_midi as the transport.
MIDI_CREATE_INSTANCE(Adafruit_USBD_MIDI, usb_midi, MIDI);
// SETTING UP THE MOTORS
int potentiometer;
int speed;
// MOTOR 1
#define EN_PIN_1 5
#define STEP_PIN_1 21
#define DIR_PIN_1 20
// MOTOR 2
#define EN_PIN_2 4
#define STEP_PIN_2 19
#define DIR_PIN_2 18
// MOTOR 3
#define EN_PIN_3 1
#define STEP_PIN_3 12
#define DIR_PIN_3 13
// MOTOR 4 (silent driver)
#define EN_PIN_4 0
#define STEP_PIN_4 3
#define DIR_PIN_4 2
const bool motorDirection = LOW; //you can use this to change the motor direction, comment out if you aren't using it.
// THE MILLIS STUFF
//Index 0 is not used.
unsigned long motorSpeeds[] = {0, 0, 0, 0, 0}; //holds the speed value of the motors.
unsigned long prevStepMicros[] = {0, 0, 0, 0, 0}; //last time
unsigned long startMicros;
unsigned long lastTime; //Will store the time that the last event occured.
int TIME = 1000; // Number of milliseconds for millis()
//SETUP
void setup() {
analogReadResolution(12);
pinMode(5, OUTPUT);
pinMode(4, OUTPUT);
pinMode(1, OUTPUT);
pinMode(0, OUTPUT);
//lastTime = millis(); //variable that holds the start time
// put your setup code here, to run once:
Serial.begin(9600);
// Manual begin() is required on core without built-in support e.g. mbed rp2040
if (!TinyUSBDevice.isInitialized()) {
TinyUSBDevice.begin(0);
}
usb_midi.setStringDescriptor("TinyUSB MIDI");
// Initialize MIDI, and listen to all MIDI channels
// This will also call usb_midi's begin()
MIDI.begin(MIDI_CHANNEL_OMNI);
MIDI.turnThruOff(); //turning off the sending of the recieved MIDI info
// If already enumerated, additional class driverr begin() e.g msc, hid, midi won't take effect until re-enumeration
if (TinyUSBDevice.mounted()) {
TinyUSBDevice.detach();
delay(10);
TinyUSBDevice.attach();
}
digitalWrite(EN_PIN_1, HIGH); // Start with motors disabled
digitalWrite(EN_PIN_2, HIGH);
digitalWrite(EN_PIN_3, HIGH);
digitalWrite(EN_PIN_4, HIGH);
// Attach the handleNoteOn function to the MIDI Library. It will
// be called whenever the Bluefruit receives MIDI Note On messages.
MIDI.setHandleNoteOn(handleNoteOn);
// Do the same for MIDI Note Off messages.
MIDI.setHandleNoteOff(handleNoteOff);
//MOTOR NR 1.
//enable pin
pinMode(5, OUTPUT);
//step pin
pinMode(21, OUTPUT);
//direction pin
pinMode(20, OUTPUT);
//MOTOR NR 2.
//enable pin
pinMode(4, OUTPUT);
//step pin
pinMode(19, OUTPUT);
//direction pin
pinMode(18, OUTPUT);
//MOTOR NR 3.
//enable pin
pinMode(1, OUTPUT);
//step pin
pinMode(12, OUTPUT);
//direction pin
pinMode(13, OUTPUT);
//MOTOR NR 4.
//enable pin
pinMode(0, OUTPUT);
//step pin
pinMode(3, OUTPUT);
//direction pin
pinMode(4, OUTPUT);
digitalWrite(DIR_PIN_1, motorDirection);
digitalWrite(DIR_PIN_2, motorDirection);
digitalWrite(DIR_PIN_3, motorDirection);
digitalWrite(DIR_PIN_4, motorDirection); //and this one too. */
//reading from the potentiometer
pinMode(26,INPUT);
lastTime = millis(); // Initialize lastTime
}
void loop() {
// read any new MIDI messages
MIDI.read();
//updating the MIDI
#ifdef TINYUSB_NEED_POLLING_TASK
// Manual call tud_task since it isn't called by Core's background
TinyUSBDevice.task();
#endif
// calling the one step function for each stepper motor
oneStep(1, STEP_PIN_1);
oneStep(2, STEP_PIN_2);
oneStep(3, STEP_PIN_3);
oneStep(4, STEP_PIN_4);
potentiometer = analogRead(26);
speed = map(potentiometer, 0, 4095, 10, 15000);
if(millis() - lastTime >= TIME){
Serial.println(speed);
lastTime = millis(); // Add this line to update lastTime
}
}
//MOTOR STEP FUNCTION
void oneStep(byte motorNumber, byte stepPin) {
if ((micros() - prevStepMicros[motorNumber] >= motorSpeeds[motorNumber]) && (motorSpeeds[motorNumber] != 0)) //test whether the period has elapsed and don't use index 0
{
prevStepMicros[motorNumber] += motorSpeeds[motorNumber];
digitalWrite(stepPin, HIGH);
digitalWrite(stepPin, LOW);
}
}
void handleNoteOn(byte channel, byte pitch, byte velocity) {
if(channel == 1){
digitalWrite(EN_PIN_1, 0);
//gate_1 = true; //we have signal
//update motor speed
motorSpeeds[1] = speed;
}
if(channel == 2){
digitalWrite(EN_PIN_2, 0);
//gate_2 = true; //we have signal
//update motor speed
motorSpeeds[2] = speed;
}
if(channel == 3){
digitalWrite(EN_PIN_3, 0);
//gate_3 = true; //we have signal
//update motor speed
motorSpeeds[3] = speed;
}
if(channel == 4){
digitalWrite(EN_PIN_4, 0);
//gate_4 = true; //we have signal
//update motor speed
motorSpeeds[4] = speed;
}
}
void handleNoteOff(byte channel, byte pitch, byte velocity) {
if(channel == 1 ){
//gate_1 = false;
//motorSpeeds[1] = motorSpeedPitch_1[0];
digitalWrite(EN_PIN_1, 1);
}
if(channel == 2 ){
digitalWrite(EN_PIN_2, 1);
//gate_2 = false;
//motorSpeeds[2] = motorSpeedPitch_2[0];
}
if(channel == 3 ){
digitalWrite(EN_PIN_3, 1);
//gate_3 = false;
//motorSpeeds[3] = motorSpeedPitch_3[0];
}
if(channel == 4 ){
digitalWrite(EN_PIN_4, 1);
//gate_4 = false;
//motorSpeeds[4] = motorSpeedPitch_4[0];
}
}
This is version 8 of the code. #
//including the MIDI libraries
#include <Arduino.h>
#include <Adafruit_TinyUSB.h>
#include <MIDI.h>
// USB MIDI object - library accessing
Adafruit_USBD_MIDI usb_midi;
// Create a new instance of the Arduino MIDI Library,
// and attach usb_midi as the transport.
MIDI_CREATE_INSTANCE(Adafruit_USBD_MIDI, usb_midi, MIDI);
// SETTING UP THE MOTORS
// MOTOR 1
#define EN_PIN_1 5
#define STEP_PIN_1 21
#define DIR_PIN_1 20
// MOTOR 2
#define EN_PIN_2 4
#define STEP_PIN_2 19
#define DIR_PIN_2 18
// MOTOR 3
#define EN_PIN_3 1
#define STEP_PIN_3 12
#define DIR_PIN_3 13
// MOTOR 4 (silent driver)
#define EN_PIN_4 0
#define STEP_PIN_4 3
#define DIR_PIN_4 2
uint32_t motorSpeed_1; //motor one speed
uint32_t motorSpeed_2; // motor two speed
bool gate_1; //making the motor spin and stop TRUE = NOTE IS ON
bool gate_2; //making the motor spin and stop TRUE = NOTE IS ON
bool gate_3; //making the motor spin and stop TRUE = NOTE IS ON
bool gate_4; //making the motor spin and stop TRUE = NOTE IS ON
const bool motorDirection = LOW; //you can use this to change the motor direction, comment out if you aren't using it.
// THE MILLIS STUFF
//Index 0 is not used.
unsigned long motorSpeeds[] = {0, 0, 0, 0, 0}; //holds the speed value of the motors.
unsigned long prevStepMicros[] = {0, 0, 0, 0, 0}; //last time
unsigned long startMicros;
unsigned long lastEvent; //Will store the time that the last event occured.
int notMoving = 0;
// MIDI note to motor delay (microseconds) lookup table
// Based on measurements: C1 (MIDI 24) ≈ 29500µs, C3 (MIDI 48) ≈ 6500µs, C5 (MIDI 72) ≈ 879µs
// MORE delay = LOWER pitch
// MOTOR SPEED VALUE ARRAYS
const uint32_t motorSpeedPitch_1[128] = {
// Octave -1 (C-1 to B-1, MIDI 0-11) - extrapolated
476800, 449824, 424320, 400224, 377472, 356032, 335840, 316864, 299040, 282336, 266720, 251648,
// Octave 0 (C0 to B0, MIDI 12-23) - extrapolated
238400, 224912, 212160, 200112, 188736, 178016, 167920, 158432, 149520, 141168, 133360, 125824,
// Octave 1 (C1 to B1, MIDI 24-35)
// C1=29800, G#1=18600, E1=23800, G1=19100, A#1=15800
29800, 28131, 26546, 25042, 23800, 22456, 21185, 19993, 18600, 17564, 16580, 15646,
// Octave 2 (C2 to B2, MIDI 36-47)
// D2=12700, E2=10800, F2=10250, A2=8050
14900, 14065, 12700, 11990, 10800, 10250, 9673, 9128, 8613, 8050, 7594, 7168,
// Octave 3 (C3 to B3, MIDI 48-59)
// C3=6500, D3=5250, D#3=5300, F#3=4354, B3=2903
6500, 6137, 5250, 5300, 5011, 4728, 4354, 4108, 3877, 3661, 3249, 3066,
// Octave 4 (C4 to B4, MIDI 60-71)
// E4=1879
2903, 2740, 2586, 2440, 1879, 1773, 1673, 1579, 1490, 1407, 1328, 1254,
// Octave 5 (C5 to B5, MIDI 72-83)
// C5=929, E5=483, G5=300
929, 877, 828, 781, 483, 455, 430, 300, 283, 267, 252, 238,
// Octave 6 (C6 to B6, MIDI 84-95)
224, 211, 199, 188, 178, 168, 158, 149, 141, 133, 126, 119,
// Octave 7 (C7 to B7, MIDI 96-107)
112, 105, 99, 94, 89, 84, 79, 75, 70, 66, 63, 59,
// Octave 8 (C8 to B8, MIDI 108-119)
56, 53, 50, 47, 44, 42, 39, 37, 35, 33, 31, 29,
// Octave 9-10 (C9 to G10, MIDI 120-127)
28, 26, 25, 23, 22, 21, 19, 18
};
const uint32_t motorSpeedPitch_2[128] = {
// Octave -1 (C-1 to B-1, MIDI 0-11) - extrapolated
476800, 449824, 424320, 400224, 377472, 356032, 335840, 316864, 299040, 282336, 266720, 251648,
// Octave 0 (C0 to B0, MIDI 12-23) - extrapolated
238400, 224912, 212160, 200112, 188736, 178016, 167920, 158432, 149520, 141168, 133360, 125824,
// Octave 1 (C1 to B1, MIDI 24-35)
// C1=29800, G#1=18600, E1=23800, G1=19100, A#1=15800
29800, 28131, 26546, 25042, 23800, 22456, 21185, 19993, 18600, 17564, 16580, 15646,
// Octave 2 (C2 to B2, MIDI 36-47)
// D2=12700, E2=10800, F2=10250, A2=8050
14900, 14065, 12700, 11990, 10800, 10250, 9673, 9128, 8613, 8050, 7594, 7168,
// Octave 3 (C3 to B3, MIDI 48-59)
// C3=6500, D3=5250, D#3=5300, F#3=4354, B3=2903
6500, 6137, 5250, 5300, 5011, 4728, 4354, 4108, 3877, 3661, 3249, 3066,
// Octave 4 (C4 to B4, MIDI 60-71)
// E4=1879
2903, 2740, 2586, 2440, 1879, 1773, 1673, 1579, 1490, 1407, 1328, 1254,
// Octave 5 (C5 to B5, MIDI 72-83)
// C5=929, E5=483, G5=300
929, 877, 828, 781, 483, 455, 430, 300, 283, 267, 252, 238,
// Octave 6 (C6 to B6, MIDI 84-95)
224, 211, 199, 188, 178, 168, 158, 149, 141, 133, 126, 119,
// Octave 7 (C7 to B7, MIDI 96-107)
112, 105, 99, 94, 89, 84, 79, 75, 70, 66, 63, 59,
// Octave 8 (C8 to B8, MIDI 108-119)
56, 53, 50, 47, 44, 42, 39, 37, 35, 33, 31, 29,
// Octave 9-10 (C9 to G10, MIDI 120-127)
28, 26, 25, 23, 22, 21, 19, 18
};
const uint32_t motorSpeedPitch_3[128] = {
// Octave -1 (C-1 to B-1, MIDI 0-11) - extrapolated
476800, 449824, 424320, 400224, 377472, 356032, 335840, 316864, 299040, 282336, 266720, 251648,
// Octave 0 (C0 to B0, MIDI 12-23) - extrapolated
238400, 224912, 212160, 200112, 188736, 178016, 167920, 158432, 149520, 141168, 133360, 125824,
// Octave 1 (C1 to B1, MIDI 24-35)
// C1=29800, G#1=18600, E1=23800, G1=19100, A#1=15800
29800, 28131, 26546, 25042, 23800, 22456, 21185, 19993, 18600, 17564, 16580, 15646,
// Octave 2 (C2 to B2, MIDI 36-47)
// D2=12700, E2=10800, F2=10250, A2=8050
14900, 14065, 12700, 11990, 10800, 10250, 9673, 9128, 8613, 8050, 7594, 7168,
// Octave 3 (C3 to B3, MIDI 48-59)
// C3=6500, D3=5250, D#3=5300, F#3=4354, B3=2903
6500, 6137, 5250, 5300, 5011, 4728, 4354, 4108, 3877, 3661, 3249, 3066,
// Octave 4 (C4 to B4, MIDI 60-71)
// E4=1879
2903, 2740, 2586, 2440, 1879, 1773, 1673, 1579, 1490, 1407, 1328, 1254,
// Octave 5 (C5 to B5, MIDI 72-83)
// C5=929, E5=483, G5=300
929, 877, 828, 781, 483, 455, 430, 300, 283, 267, 252, 238,
// Octave 6 (C6 to B6, MIDI 84-95)
224, 211, 199, 188, 178, 168, 158, 149, 141, 133, 126, 119,
// Octave 7 (C7 to B7, MIDI 96-107)
112, 105, 99, 94, 89, 84, 79, 75, 70, 66, 63, 59,
// Octave 8 (C8 to B8, MIDI 108-119)
56, 53, 50, 47, 44, 42, 39, 37, 35, 33, 31, 29,
// Octave 9-10 (C9 to G10, MIDI 120-127)
28, 26, 25, 23, 22, 21, 19, 18
};
const uint32_t motorSpeedPitch_4[128] = {
// Octave -1 (C-1 to B-1, MIDI 0-11) - extrapolated
476800, 449824, 424320, 400224, 377472, 356032, 335840, 316864, 299040, 282336, 266720, 251648,
// Octave 0 (C0 to B0, MIDI 12-23) - extrapolated
238400, 224912, 212160, 200112, 188736, 178016, 167920, 158432, 149520, 141168, 133360, 125824,
// Octave 1 (C1 to B1, MIDI 24-35)
// C1=29800, G#1=18600, E1=23800, G1=19100, A#1=15800
29800, 28131, 26546, 25042, 23800, 22456, 21185, 19993, 18600, 17564, 16580, 15646,
// Octave 2 (C2 to B2, MIDI 36-47)
// D2=12700, E2=10800, F2=10250, A2=8050
14900, 14065, 12700, 11990, 10800, 10250, 9673, 9128, 8613, 8050, 7594, 7168,
// Octave 3 (C3 to B3, MIDI 48-59)
// C3=6500, D3=5250, D#3=5300, F#3=4354, B3=2903
6500, 6137, 5250, 5300, 5011, 4728, 4354, 4108, 3877, 3661, 3249, 3066,
// Octave 4 (C4 to B4, MIDI 60-71)
// E4=1879
2903, 2740, 2586, 2440, 1879, 1773, 1673, 1579, 1490, 1407, 1328, 1254,
// Octave 5 (C5 to B5, MIDI 72-83)
// C5=929, E5=483, G5=300
929, 877, 828, 781, 483, 455, 430, 300, 283, 267, 252, 238,
// Octave 6 (C6 to B6, MIDI 84-95)
224, 211, 199, 188, 178, 168, 158, 149, 141, 133, 126, 119,
// Octave 7 (C7 to B7, MIDI 96-107)
112, 105, 99, 94, 89, 84, 79, 75, 70, 66, 63, 59,
// Octave 8 (C8 to B8, MIDI 108-119)
56, 53, 50, 47, 44, 42, 39, 37, 35, 33, 31, 29,
// Octave 9-10 (C9 to G10, MIDI 120-127)
28, 26, 25, 23, 22, 21, 19, 18
};
//SETUP
void setup() {
pinMode(5, OUTPUT);
pinMode(4, OUTPUT);
pinMode(1, OUTPUT);
pinMode(0, OUTPUT);
lastEvent = millis(); //variable that holds the start time
// put your setup code here, to run once:
Serial.begin(9600);
// Manual begin() is required on core without built-in support e.g. mbed rp2040
if (!TinyUSBDevice.isInitialized()) {
TinyUSBDevice.begin(0);
}
usb_midi.setStringDescriptor("TinyUSB MIDI");
// Initialize MIDI, and listen to all MIDI channels
// This will also call usb_midi's begin()
MIDI.begin(MIDI_CHANNEL_OMNI);
MIDI.turnThruOff(); //turning off the sending of the recieved MIDI info
// If already enumerated, additional class driverr begin() e.g msc, hid, midi won't take effect until re-enumeration
if (TinyUSBDevice.mounted()) {
TinyUSBDevice.detach();
delay(10);
TinyUSBDevice.attach();
}
digitalWrite(EN_PIN_1, HIGH); // Start with motors disabled
digitalWrite(EN_PIN_2, HIGH);
digitalWrite(EN_PIN_3, HIGH);
digitalWrite(EN_PIN_4, HIGH);
// Attach the handleNoteOn function to the MIDI Library. It will
// be called whenever the Bluefruit receives MIDI Note On messages.
MIDI.setHandleNoteOn(handleNoteOn);
// Do the same for MIDI Note Off messages.
MIDI.setHandleNoteOff(handleNoteOff);
//MOTOR NR 1.
//enable pin
pinMode(5, OUTPUT);
//step pin
pinMode(21, OUTPUT);
//direction pin
pinMode(20, OUTPUT);
//MOTOR NR 2.
//enable pin
pinMode(4, OUTPUT);
//step pin
pinMode(19, OUTPUT);
//direction pin
pinMode(18, OUTPUT);
//MOTOR NR 3.
//enable pin
pinMode(1, OUTPUT);
//step pin
pinMode(12, OUTPUT);
//direction pin
pinMode(13, OUTPUT);
//MOTOR NR 4.
//enable pin
pinMode(0, OUTPUT);
//step pin
pinMode(3, OUTPUT);
//direction pin
pinMode(4, OUTPUT);
digitalWrite(DIR_PIN_1, motorDirection);
digitalWrite(DIR_PIN_2, motorDirection);
digitalWrite(DIR_PIN_3, motorDirection);
digitalWrite(DIR_PIN_4, motorDirection); //and this one too. */
}
void loop() {
// read any new MIDI messages
MIDI.read();
//updating the MIDI
#ifdef TINYUSB_NEED_POLLING_TASK
// Manual call tud_task since it isn't called by Core's background
TinyUSBDevice.task();
#endif
// calling the one step function for each stepper motor
oneStep(1, STEP_PIN_1);
oneStep(2, STEP_PIN_2);
oneStep(3, STEP_PIN_3);
oneStep(4, STEP_PIN_4);
}
//MOTOR STEP FUNCTION
void oneStep(byte motorNumber, byte stepPin) {
if ((micros() - prevStepMicros[motorNumber] >= motorSpeeds[motorNumber]) && (motorSpeeds[motorNumber] != 0)) //test whether the period has elapsed and don't use index 0
{
prevStepMicros[motorNumber] += motorSpeeds[motorNumber];
digitalWrite(stepPin, HIGH);
digitalWrite(stepPin, LOW);
}
}
void handleNoteOn(byte channel, byte pitch, byte velocity) {
if(channel == 1){
digitalWrite(EN_PIN_1, 0);
//gate_1 = true; //we have signal
//update motor speed
motorSpeeds[1] = motorSpeedPitch_1[pitch];
}
if(channel == 2){
digitalWrite(EN_PIN_2, 0);
//gate_2 = true; //we have signal
//update motor speed
motorSpeeds[2] = motorSpeedPitch_2[pitch];
}
if(channel == 3){
digitalWrite(EN_PIN_3, 0);
//gate_3 = true; //we have signal
//update motor speed
motorSpeeds[3] = motorSpeedPitch_3[pitch];
}
if(channel == 4){
digitalWrite(EN_PIN_4, 0);
//gate_4 = true; //we have signal
//update motor speed
motorSpeeds[4] = motorSpeedPitch_4[pitch];
}
}
void handleNoteOff(byte channel, byte pitch, byte velocity) {
if(channel == 1 ){
//gate_1 = false;
//motorSpeeds[1] = motorSpeedPitch_1[0];
digitalWrite(EN_PIN_1, 1);
}
if(channel == 2 ){
digitalWrite(EN_PIN_2, 1);
//gate_2 = false;
//motorSpeeds[2] = motorSpeedPitch_2[0];
}
if(channel == 3 ){
digitalWrite(EN_PIN_3, 1);
//gate_3 = false;
//motorSpeeds[3] = motorSpeedPitch_3[0];
}
if(channel == 4 ){
digitalWrite(EN_PIN_4, 1);
//gate_4 = false;
//motorSpeeds[4] = motorSpeedPitch_4[0];
}
}
