My circuit #

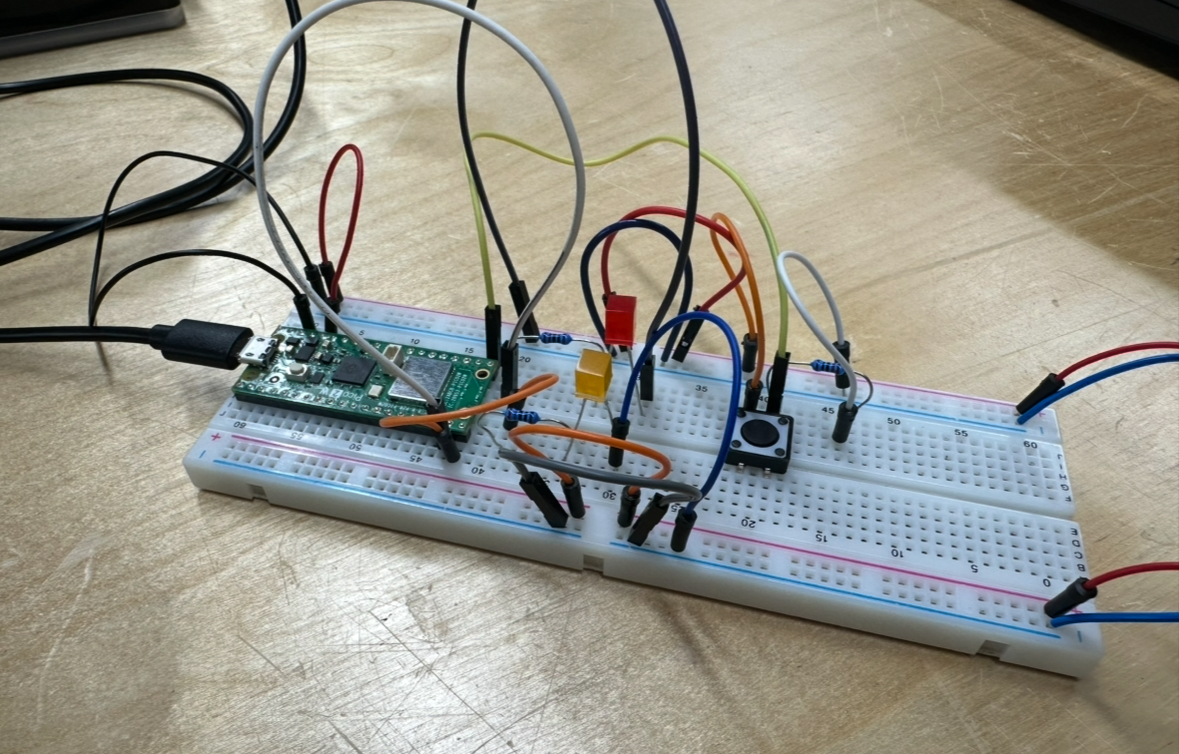

- When the program starts, both LEDs are off

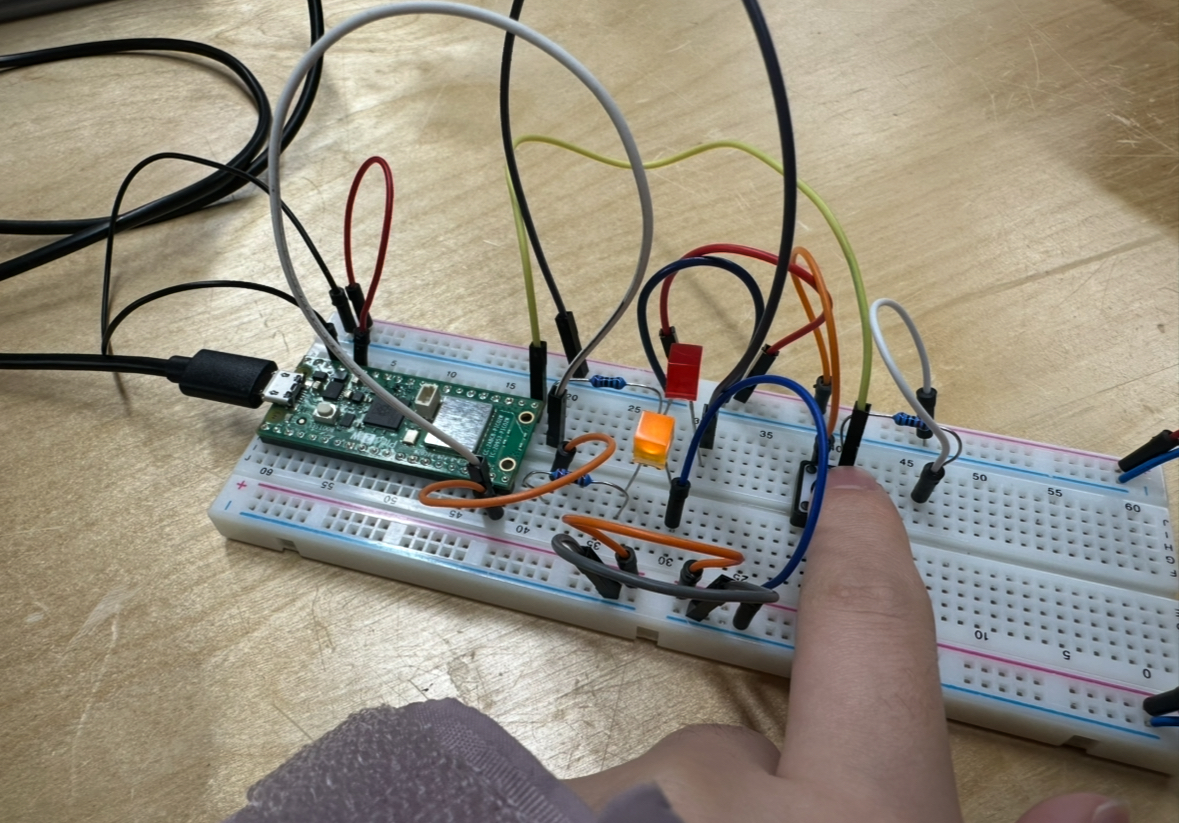

- When the switch is pressed once, the first LED turns on

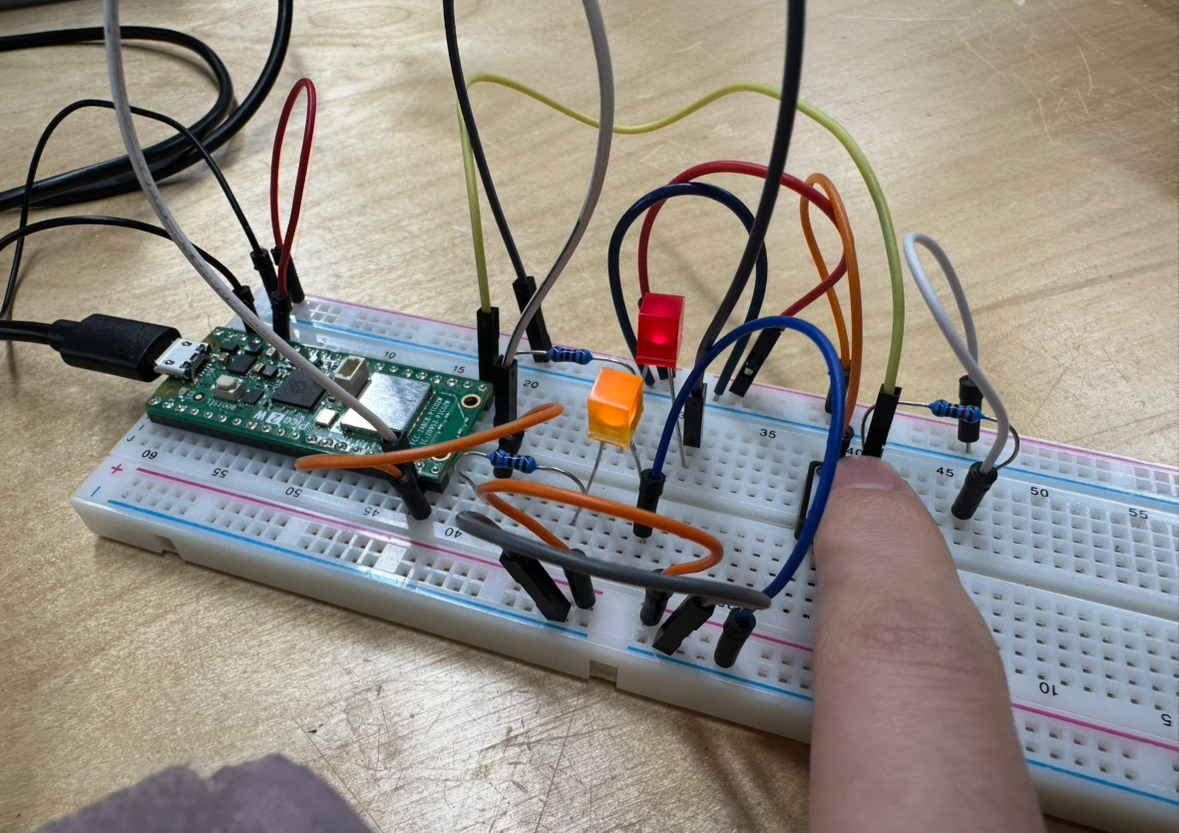

- When the switch is pressed the second time, the second LED turns on (the first one should also still be on)

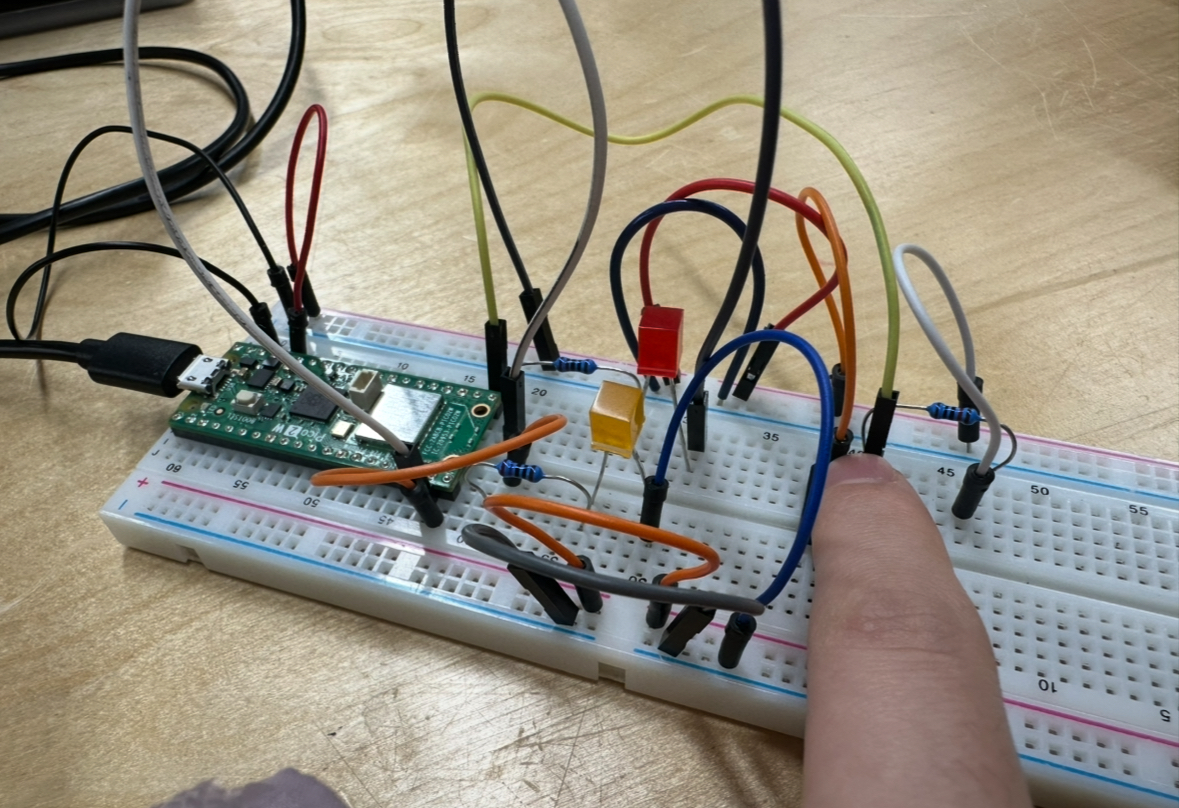

- When the switch is pressed the third time, both LEDs turn off
My Code #
int button;
int pressNum;
int lastB;
void setup() {
pinMode(15,OUTPUT);
pinMode(14,OUTPUT);
pinMode(16,INPUT);
digitalWrite(15,LOW);
digitalWrite(14,LOW);
Serial.begin(9600);
}
void loop() {
button = digitalRead(16);
Serial.println(button);
if(button != lastB ){
if(button == 1){
pressNum++;
if(pressNum >2){
pressNum = 0;
}
LEDupdate();
}
}
lastB = button;
delay(50);
}
void LEDupdate(){
if(pressNum == 0){
digitalWrite(15,LOW);
digitalWrite(14,LOW);
}
if(pressNum == 1){
digitalWrite(15,HIGH);
digitalWrite(14,LOW);
}
if(pressNum == 2){
digitalWrite(15,HIGH);
digitalWrite(14,HIGH);
}
}
